A new soundcard oscilloscope

A couple of years ago I presented a preamplifier on my homepage which allowed it to use standard oscilloscope probes on the line input of a soundcard. This small circuit solved the problem that a soundcard has quite a low impedance on its line inputs which makes it unusable for measuring high-impedance signals.

Already at that time I found quite a few application programs to use the soundcard as a simple and cheap storage oscilloscope, but nobody seemed to bother about the impedance issue or any way to connect oscilloscope probes to a soundcard.

My previous design used a single-supply operational amplifier and a 9 V battery to offer a standardized input impedance of 1 MΩ at the input and buffer the input signal which is then capacitively coupled into the line input of a soundcard. A directly coupled signal would have required a surgical procedure on the soundcard itself, which I deemed too risky.

Now, you can buy external USB soundcards for cheap money and about a year ago I got the idea to modify such a card for a DC connection of the input signal. In 2008 also the electronics journal Elektor took again up the idea of using the soundcard for electronic measurements. So now I finally went all the way and designed a universal input/output circuitry which can be adapted to different soundcards and offers two input channels with a standardized input impedance of 1 MΩ and two low-impedance, DC connected output channels which can drive an amplitude of 1 V into a 40 Ω load.

The USB soundcard

My design is based on the USB soundcard SC-5500P from Trust which is based on the CMedia USB sound chip CM106. From the datasheet of this chip you can see that it uses a single +5 V supply voltage and handles negative amplitudes of sound signals by offsetting these with a reference voltage of +2.25 V which is available on pin 38 of the QFP100-package for the connection of external bypass capacitors.

In order to connect a signal to the inputs of this chip without coupling capacitors you have to add this reference voltage to the signal, when taking the output signal you would have to subtract this voltage from the signal – this can easily be done with operational amplifiers.

The 5.1 soundcard comes with 2 stereo output channels, 1 mono output channel, 1 stereo line-in channel and 1 mono microphone input channel (the chip itself actually supports stereo microphone input, but this is not externally available).

Supply voltage

Since the soundcard itself is powered from USB, a single +5 V supply voltage is available on the card. Also the current which can be drawn from this supply is limited, but since I am only adding a handful of operational amplifiers and limit the output current from the signal output this is not a problem.

In order to work with directly coupled positive and negative signals, a negative supply voltage is needed. I chose to create this supply voltage with a small DC/DC converter based on the MC34063 chip.

A first also showed that it was necessary to buffer the reference voltage from the sound chip itself, because the sound chip was not able to drive the four inputs where I needed the reference voltage (one for each input channel and one for each output channel). Therefore I had to add a voltage follower based on a single operational amplifier.

So here is the schematic diagram for the supply part:

(The gray components are original parts on the sound card.)

The input circuit

The input circuit consists of a voltage follower with an input impedance of 1 MΩ followed by a voltage adder which takes the 2.25 V reference voltage from the soundcard and adds it to the input signal. This way a symmetric sine wave with an amplitude of 1 V would be transformed into a sine wave swinging between 1.25 V and 3.25 V which is then fed into the sound chips analog-to-digital converter inputs. All the conversion for both channels is performed in a single quad operational amplifier package. I chose the TL074, but for this application the exact type of operational amplifier is not critical. The total amplification of the two stages is 1 – i.e. the input signal is presented to the sound chip with unchanged amplitude. At the very input you can easily implement an attenuator as found on conventional oscilloscopes, allowing you to take only 1/10 or any other fraction of the input signal – I realized a selectable 1/10 attenuation in this circuit.

In order to connect it to the soundcard with no interference with the original input circuitry I removed the coupling capacitors (C22 and C27, SMD 3 μF) and soldered the connection cable to one of the solder pads of these capacitors.

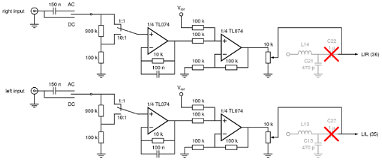

Here is the schematic diagram for the input circuit:

The output circuit

Apart from an oscilloscope a signal generator is also a very important tool in an electronics workshop. And some soundcard oscilloscope software also provides means to send output signals to the soundcard, emulating a signal generator. Again the original output circuit of a soundcard might not be up to the task and especially its specifications are almost certainly unknown.

I therefore even designed an output stage. It also consists of two operational amplifiers per channel – one to subtract the 2.25 V reference voltage from the sound chips output signal, and the second one to drive a complementary pair of bipolar transistors. This is not a real power amplifier and the signal amplitude is limited to the actual output voltage of the sound chip, since the two operational amplifier stages have an amplification of 1. But it is able to drive a signal with a 1 V amplitude into a standard 50 Ω load with low distortion.

In order to connect it to the soundcard, I removed the original coupling capacitors (C10 and C12, 470 μF through-hole) and attached wires to one of these capacitors pads on the circuit board.

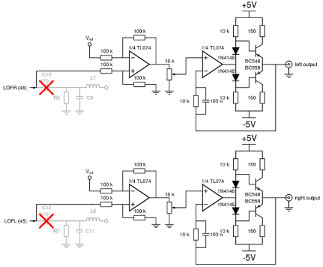

Here is the schematic diagram for the output circuit:

Putting it all together

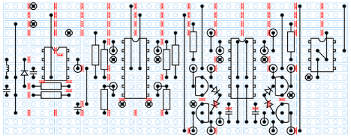

I built up the circuit on a piece of stripboard small enough to fit into a box together with the circuit board of the soundcard. In order to optimize the design I first drew the layout in XCircuit and then soldered it together starting with the wire bridges. The layout on the stripboard looks like this:

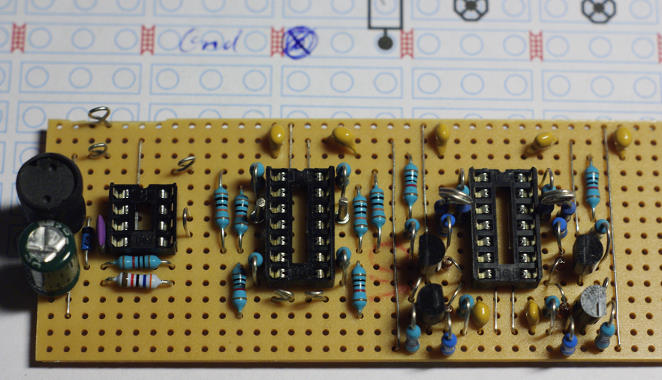

Assembling the circuit on the stripboard according to the printed design.

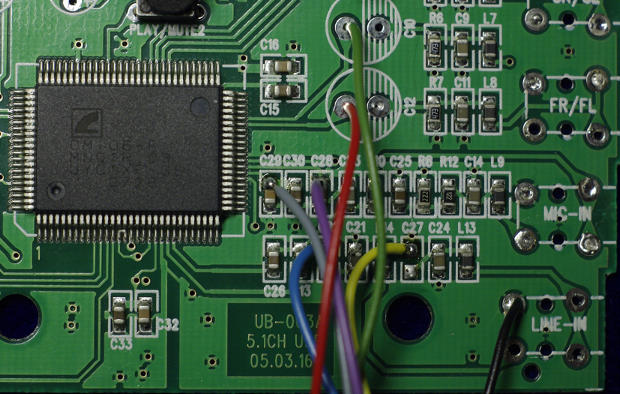

Soldering the connection wires to the corresponding pads on the soundcard.

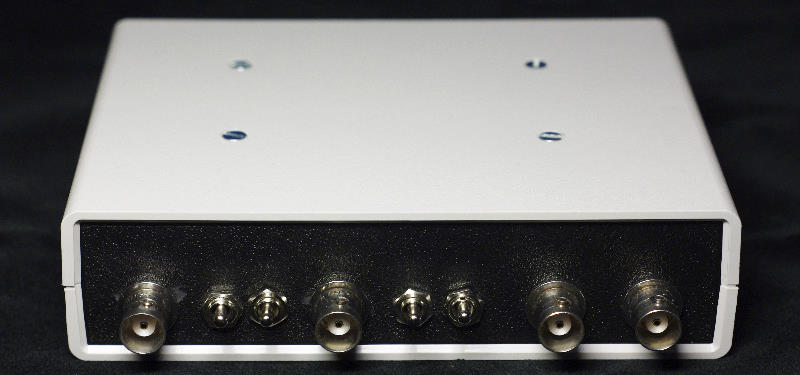

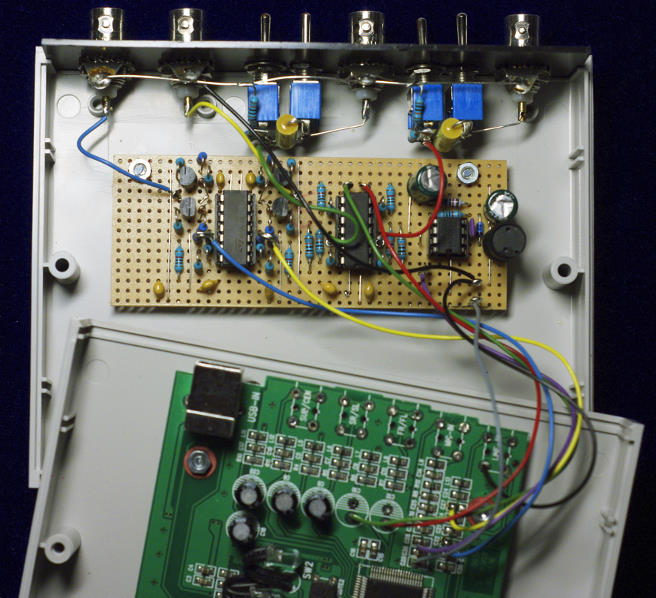

Connecting the amplifier board with the soundcard inside the box. You can notice the still absent voltage follower for the reference voltage on the stripboard - I added it after a failed first test.

440 Hz sine wave from the soundcard and 880 Hz sine wave from a signal generator on a Hameg 60 MHz analog oscilloscope.

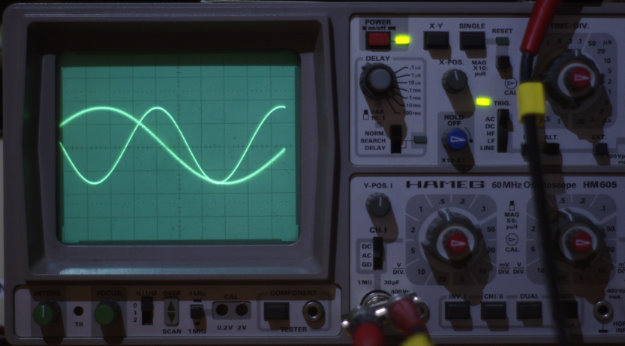

The same two signals as above, 440 Hz sine wave from the soundcard and 880 Hz sine wave from a signal generator, seen on the computer screen.

Software

There seem to be several applications around on the internet, which can use the soundcard as an oscilloscope. Earlier I was advertising a program called audioTester from http://www.audiotester.de/ on my homepage. It also has seen an upgrade in the recent years, but I haven’t tested it again, yet.

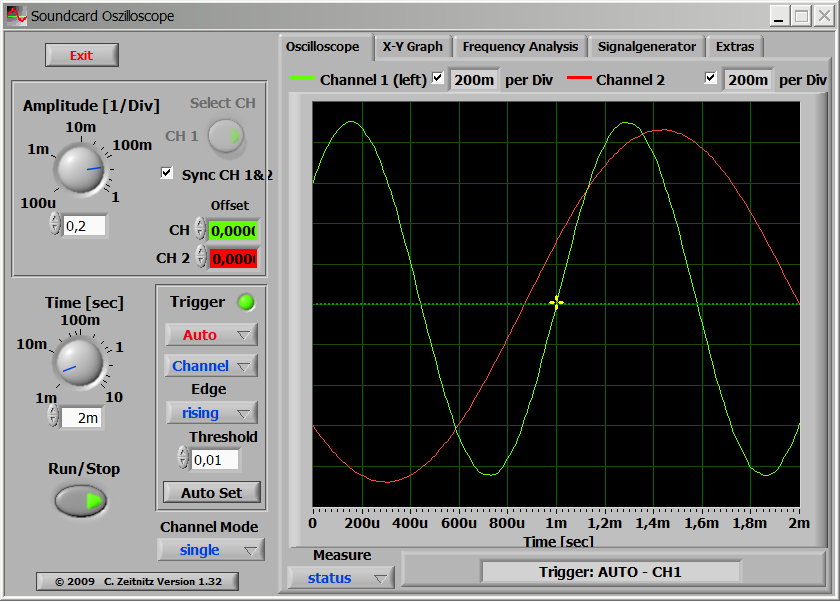

Recently I found another program from Germany, Soundcard Oscilloscope from http://www.zeitnitz.de/. This program allows to control the soundcard output as quite a versatile signal generator, including a noise source, frequency sweep and adjustable phase delay between the two channels. It offers a two channel scope display with cursors and various trigger settings, an independent X-Y display and a spectrum analyzer. It also allows to highpass/lowpass/bandpass/notch filter the input signal and display the result on the scope screen.

The Soundcard Oscilloscope software is free for private and educational use, but I chose to register my copy of the software and plan to contact the author soon with some additional suggestions, but also some flaws which I think I have discovered.

Spectrum display of a 440 Hz square wave signal fed back from the soundcard output through the amplifier card into the input.

Cost

part supplier price/piece sum
USB sound card Kjell & Co. SEK 299 SEK 299
plastic box Kjell & Co. SEK 69 SEK 69
stripboard Kjell & Co. SEK 45 SEK 45
TL074 Electrokit.se SEK 10 SEK 20
TL071 Electrokit.se SEK 6 SEK 6
MC34063 Electrokit.se SEK 15 SEK 15
BNC socket Electrokit.se SEK 8 SEK 32
switch Electrokit.se SEK 6 SEK 24
capacitors, resistors, diodes, transistors own stock SEK 50 SEK 50

68 comments to A new soundcard oscilloscope

  • Rodney Byne

    Ref the second paragraph of the above article;

    “Already at that time I found quite a few application programs to use the soundcard as a simple and cheap storage oscilloscope, but nobody seemed to bother about the impedance issue or any way to connect oscilloscope probes to a soundcard.”

    This was simply resolved by me in 2011 as shown in:

    http://www.zen22142.zen.co.uk/Circuits/Testgear/pcscopeprobe.htm

    to examine 5v logic waveforms using a fet wired as a follower, then attenuating its output to match the sound card input impedance.

    In altering the value of the 27k resistor by paralleling another
    resistor if needed, the division ratio can be tweaked between
    30 and 40 to suit the high input signal.
    See further useful advice in my article.

    • uwezi

      Hi Rodney,

      if you follow my link above, then you will see that my first solution dates back to at least 2010, but that’s only the date of the latest change – I don’t remember, when I actually built the first version. But I do not want to claim any priority here, nor argue about it…

  • andre fileres

    The Windows volume control is too coarse, and the 10k pot feeding the input to the sound card doesn’t work very well. As the wiper leaves the top of the pot the sound card stops responding (possibly because the op amp output impedance has risen? http://www.ewordpressthemes.net/

    • uwezi

      if you chose the same values as I did, i.e. 10 kohm for the pots, then no, that cannot be the reason. The output of the opamps has an impedance in the order of 100 ohms and can be completely neglected in this context.

      Are you sure you connected the pots correctly?

      Also what do you mean when you write that the sound card “stops responding”? Do you get an error message, or just a constant zero reading?

      And finally: I do not have problems with the volume control under Windows either, however, since this is used for audio applications it most probably follows a logarithmic scale. However, the controls in the software I recommended works linear with very fine control.

  • I dugg some of you post as I cerebrated they were very beneficial very useful

  • Mike

    Hi
    I used your circuit as inspiration for my pc based V-I curve tracer.
    I get around the dc offset being upset when adjusting the gain pot, I added another stage of op amps and added the offset after the gain adjustment is made.
    For me it made the gain adjustment a lot easier, you don’t need to make any adjustment to the software dc offset.

  • Your style is so unique in comparison to other folks I have
    read stuff from. I appreciate you for posting when you have the opportunity, Guess I will just bookmark this
    web site.

  • Wow! After all I got a blog from where I can in fact take
    valuable information regarding my study and knowledge.

  • Ricardo

    Hi uwezi, I have a similar board and I was able to find the capacitors and VREF as you mentioned. One question, I see in many similar circuits, a pair of diodes on each input, probably to restrict the voltage at the sound board. Wouldn’t you recommend that? http://www.diyaudio.com/forums/attachments/pc-based/190680d1286283103-free-pc-based-oscilloscope-spectrum-analyzer-function-generator-buff.gif

    • uwezi

      Hi Ricardo,

      it depends a bit on what your plans are. Of course a couple of clamping diodes at the input of the operational amplifier cannot do any harm, but I would not rely on them as a fool-proof protection circuit either.

      Honestly, the only problem I once had with this type of circuit was caused by a short-circuit through the grounded shield of the BNC connector and those diodes will not prevent you from errors like this.

      The clamping circuit you found is not suitable, however, because it relies on very small and asymmetric signals at the input of the operational amplifier.

      You could use the following circuit:

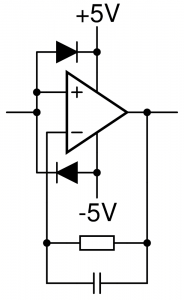

      Input protection for the operational amplifiers. The diodes are standard silicon diodes, e.g. 1N4148 or 1N914.
